Oakdale Substation Pictures Page #1

Front view showing the 115KV incoming structure, V-switches, utility metering units, metering cabinet, S&C Circuit Switcher, transformer and secondary structure.

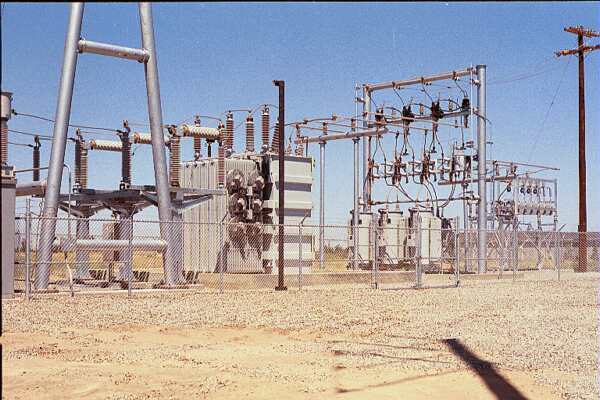

Side view showing the S&C Circuit Switcher, 12MVA transformer, secondary structure, voltage regulators and capacitor bank.
