Oakdale Substation Pictures Page #4

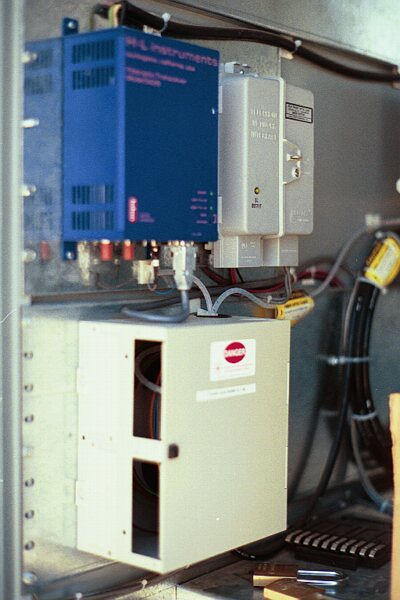

View inside of relay cabinet showing the H&L Fiber Optic Modem, the power supply for the RLH fiber optic telephone equipment and the Siecor fiber optic termination box.

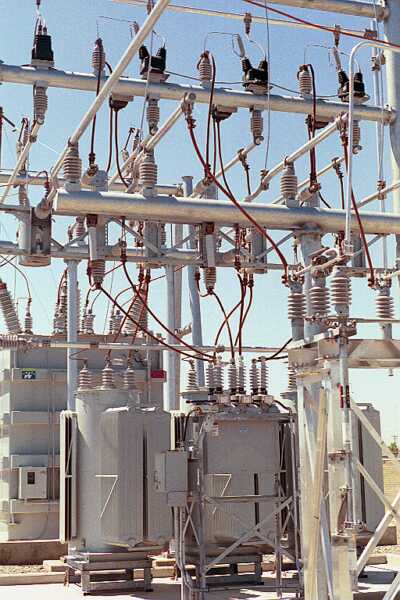

Back view of the secondary structure showing the Power Monitoring CT/PT units on top, the recloser bypass switches and the Cooper Recloser.
