Oakdale Substation Pictures Page #6

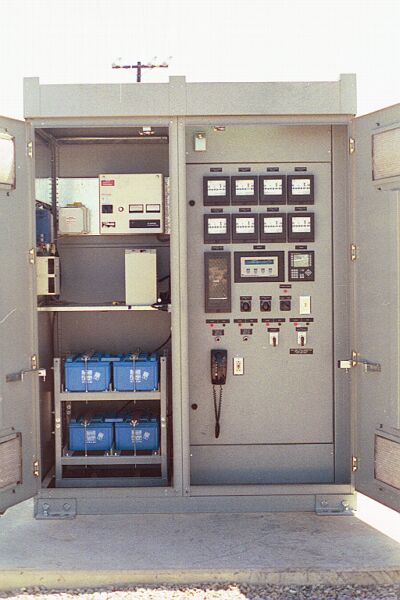

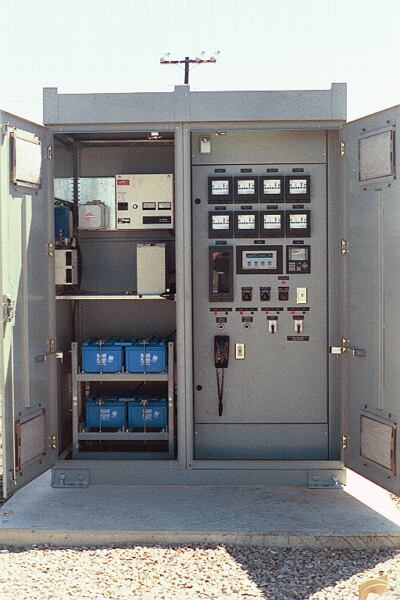

View of the relay cabinet. The left compartment showing the fiber optic equipment and batteries. The right compartment showing the relays. In the right compartment, the top two rows are the protective relays. The third row is the differential relay, the Power Measurements 3800 RTU, the 7700 ION and the control switches. The bottom row shows the fiber optic telephone. In the left compartment, the top shows the RLH fiber optic telephone equipment, the battery charger, the H&L Fiber Optic Modem, the Siecor fiber optic termination box and the UPS. The bottom shows the batteries.
